KlikFiks 3D - Installatie handleiding

KlikFiks 3D - Installation manual

Step 1 – Attaching the glass support

  1. Carefully degrease the glass and the support .

  2. Glue the glass support in place with 2-component epoxy adhesive, preferably Loctite 3034. This does not discolour over time. Wear gloves!



  4. Apply the adhesive with a rotating motion so that no air bubbles form between the resin and the support.

Allow the glue to cure for at least 24 hours before proceeding.

Step 2 – Attaching the base support


  1. Stick the double-sided tape on the part that goes on the wall.

  2. Slide the supports together a little bit, as shown in the photo, making sure they don't click yet.

  3. Do this for all KlikFiks supports.

  4. Press the work against the wall at the desired spot so that the double-sided tape adheres well and the surface sticks to the wall.

  5. Carefully pull the work loose; the base support remains attached to the wall.

  6. Accurately mark the screw holes with a thin pencil or ballpoint pen refill .

  7. Drill the holes if necessary and insert the plugs.

  8. Screw the support onto the surface


Step 3 – Attaching the artwork


9. If all steps have been performed correctly, you can easily click the artwork onto the base support.

10. Use 1 KlikFiks per 0.5 kg. If the work is large or if the support is not glued in the center of the work, use extra supports.

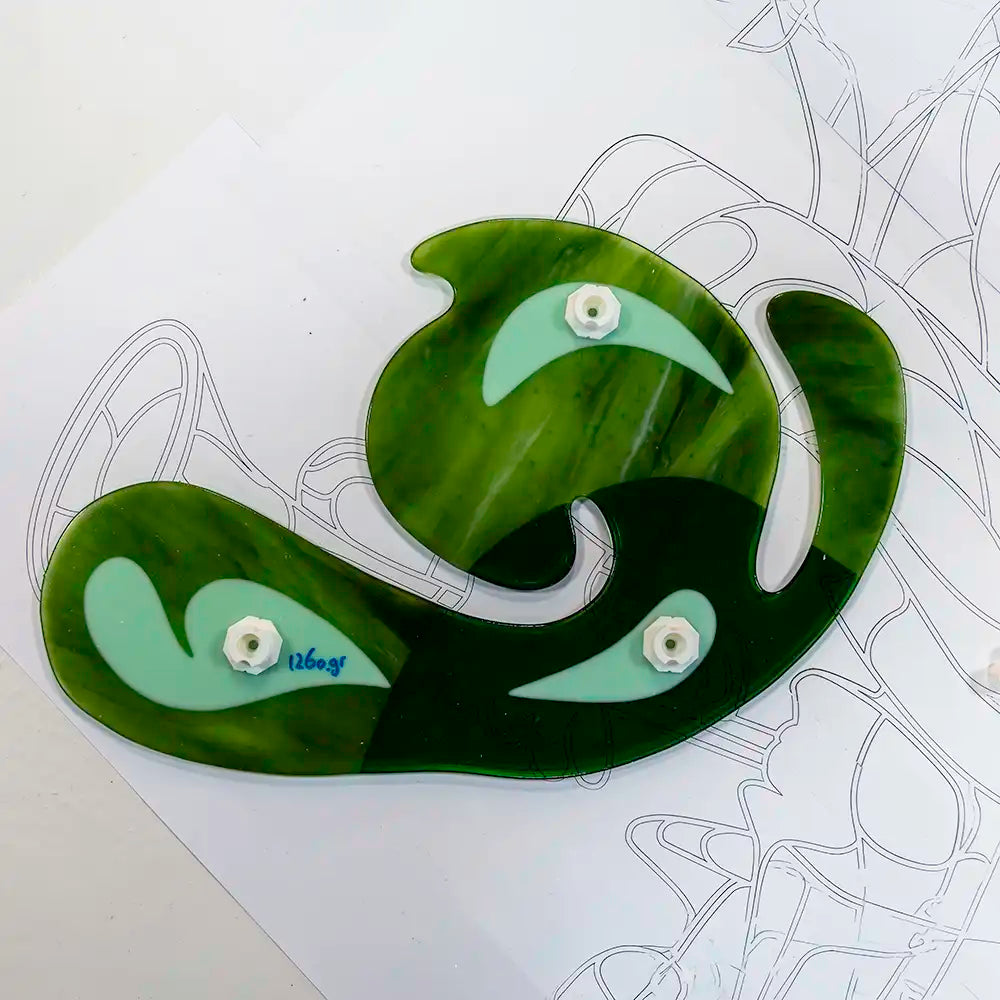

3 supports on a piece of 1260 grams
